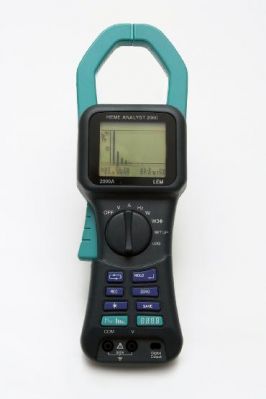

Fluke Analyst2060 LEM AC/DC True RMS Clamp-on Power Quality Meter

LOGGING Data can be stored as Saved Screens or logged values. All parameters shown on the screen are logged simultaneously. Stored readings can be recalled and displayed on-screen in normal screen format or in the case of logged data as a chart. All saved data can be downloaded to a PC including waveforms for harmonics analysis using WinLog software. WinLog also allows direct logging to a PC of waveforms, harmonics and up to 5 measured parameters. Memory Size Analyst 2050: 8 Screens and up to 5000 readings Analyst 2060: 8 Screen Smart Save and up to 10000 readings. Waveforms and Harmonics The auto-ranging scope function has ranges from 10A to 2000A and 4V to 1000V for the display of current and voltage waveforms. The time-base is selectable from 2ms/div to 50ms/div. Refresh rate 0.5 seconds. Max sampling rate 9.6 kHz The Analyst 2060 allows the harmonic content of current and voltage waveforms to be displayed up to the 25th harmonic, in bargraph format, together with individual values and THD/DF. Fundamental frequency range F0 - 45Hz to 65Hz. Software WinLog is an easy to use PC software and interface package for data logging applications with the Fluke Power Clamps and HEME ISO Series insulation testers. The software can be used to continually log the electrical measurement displayed on the instrument or to download stored data from the Analyst and ISO2000 to a PC for further analysis. Easy to use Windows format allowing the display of multiple parameters in instrument mimic, table and chart formats. Simultaneous logging of multiple parameters Waveform and stored data download from the Analyst Harmonics analysis of waveforms with the Analyst and LH1060 Simple data export to other applications Includes: -Batteries -Pair of measuring leads -Alligator clips -Operating instructions -Pouch and calibration certificate
