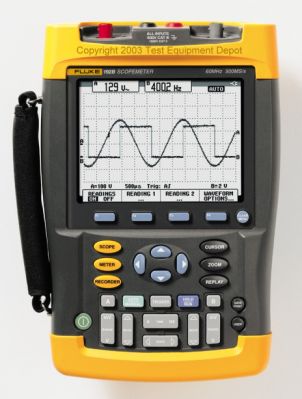

Fluke 192B ScopeMeter

For the more demanding applications, the ScopeMeter 190 Series high-performance oscilloscopes offer specifications usually found on top-end bench instruments. With up to 200 MHz bandwidth, 2.5 GS/s real-time sampling and a deep memory of 27,500 points per input they’re ideal for engineers who need the full capabilities of a high-performance oscilloscope in a handheld, battery powered instrument. - Dual-input – 200, 100 or 60 MHz bandwidth - Up to 2.5 GS/s real-time sampling per input - Connect-and-View™ automatic triggering and a full range of manual trigger modes - Digital Persistence for analyzing complex dynamic waveforms like on an analog scope - Fast display update rate for seeing dynamic behavior instantaneously - Automatic capture and replay of 100 screens - 27,500 points per input record length using ScopeRecord mode - TrendPlot paperless chart recorder for trend analysis up to 22 days - Up to 1000 V independently floating isolated inputs
