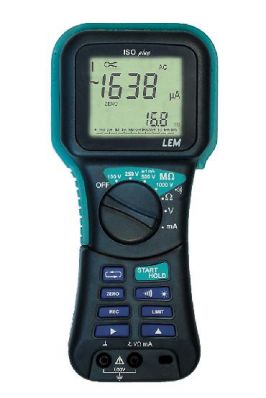

Fluke ISO-PLUS LEM Contractor and service technician insulation tester and multimeter

The ISO plus has been designed specially for contractor and service technician applications. In addition to insulation testing up to 1 kV the ISO plus incorporates low resistance and continuity testing as well as leakage current measurement directly or with Fluke current probes (CT¡¯s). Selectable scaling factors provide current ranges from 200¨¬A to 200 A. Furthermore the ISO plus offers all the functionality of industry standard multimeters including TRMS voltage and frequency measurement in a true hand held design. This unique combination satisfies universal applications in: Insulation measurement up to 20G¦¸ with test voltages of 100V, 250V, 500V and 1000V. Low-resistance measurement according to EN 61557-4 with a shortcircuit current of >200mA, (50mA can be selected to extend battery life) for applications with non-fused earth conductor connections and equipotential bus bars. Fast continuity testing with selectable buzzer threshold between 0.2 ¦¸ and 50 ¦¸ and a maximum response time of 100ms meeting all test standards. Leakage Current measurement through an external current transformer with selectable transformer ratio from 1:1 up to 1:1000 and ranges from 200¨¬A to 200A. Voltage measurement with display of AC and DC values up to 600V with an 800V overrange feature. With additional functions including ZERO (test lead null / relative), REC (Min, Max, Avg) and LIMIT (Alarm), the ISO plus provides a complete measurement solution in one compact handheld instrument.
