Elenco ST-74 AC Line Splitter

SKU: ST-74
Stock: 0
Price:
$13.25

Qty: - +
   - OR -

AUTHORIZED DISTRIBUTOR
An AC Line Splitter instrument is a special accessory for clamp meters which can be used to measure current conveniently without destroying the insulation part of the equipment power lines.

  • For measuring current in plug-in appliance and air conditioners
  • Splits two conductor line cord for reading at outlets under load
  • Permits volatge measurements at outlet under active conditions
  • Direct and 10X Sensitivity
  • Up to 250 VAC and 15 Amps.

Product Features:

  • Allows clamp meter to measure AC current on a 2-wire or 3-wire power cord
  • Provides easy and safe measurements of current without the need to cut off the plug and separate the conductors
  • Plugging the power connector into the line splitter separates the hot/live conductor from the neutral (and ground)
  • Also features voltage check function

Product Description:

Safe and easy to use, the ELENCO ST-74 AC Line Separator cleanly 'opens' a standard 120V AC line cord in order to make current measurements with a clamp meter. Simply plug the line splitter into a grounded 120V AC wall outlet, plug in your equipment and turn it on, then measure.
  • Voltage: 120V +/‐10%
  • Current: 15 Amps max.
  • Dimensions: 5.25 x 2 x 1" (133 x 51 x 25mm)
  • Weight: 5.8 oz (164.4g)

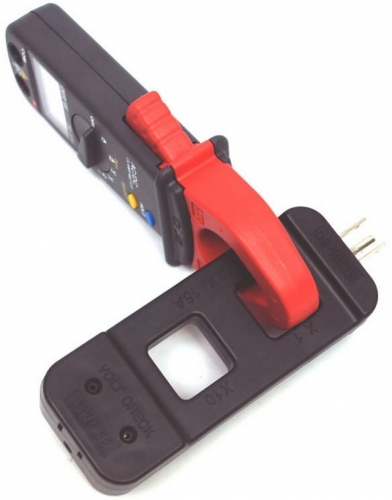

Two Clamp Positions

Out of the two test openings in the line splitter, one provides a one-to-one current reading while the other provides a times-ten (x10) reading so that small current will display with better resolution on a clamp meter.

Convenient Line Splitter

The ST-74 provides temporary separation of conductors for current measurement with clamp-type meters

Measures Current and Voltage

The line separator measure AC current up to 15 Amps and voltage up to 120V

Voltage Check Function

For voltage measurements, insert your multimeter's testleads into the line splitter's two Voltage Test jacks.
