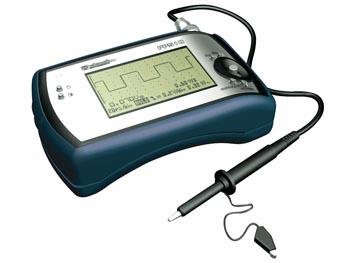

Velleman PPS10 10MS/S PERSONAL POCKET SCOPE

SKU: PPS10
Stock: 0
Price:
$129.95

Qty: - +
   - OR -

 Features:

  • measurements: dBm, dBV, DC, rms ...
  • trigger mode: run, normal, once, roll, slope +/-
  • X and Y position signal shift
  • audio power calculation (rms and peak)
  • signal markers for Volt and Time
  • frequency readout (through markers)
  • recorder function (roll mode)
  • signal storage (2 memories)
  • full auto set up
  • LCD: 128 x 64 pixels / high-contrast
  • DVM read-out with x10 option
  • time base: 200ns to 1hour/div in 32 steps
  • 5mV to 20V/div in 12 steps
  • 0.1mV sensitivity
  • 10Ms/s sampling rate
  • up to 2MHz analogue bandwidth
  • joystick operation
  • optical isolated RS232 output for PC
  • optional:
    • practical holster: BAGPS
  • in the box:
    • Personal Scope unit
    • insulated safety probe
    • user manual
    • RS232 cable

 Specifications:

  • power supply:
    • 5 x 1.5V AAA battery or Nicd / NiMH (not incl.)
    • includes battery charging circuit
    • optional: adapter 9V / 300mA (PSU03RUSA)
  • dimensions: 6.10 x 3.9 x 1.78"
  • weight: 395g
