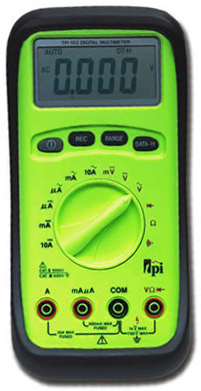

TPI 153 Full size - autoranging - easy to read - DCV basic accuracy DMM
SKU: TPI 153
Stock: 0
Stock: 0
Price:
$67.45
| 153 Specifications | |
|---|---|
| DC Volts | Maximum Input: 1000V Maximum Resolution: 0.1mV Accuracy: +/-0.3% |
| AC Volts | Maximum Input: 750V Maximum Resolution: 0.001V Accuracy: +/-0.8% |
| DC Amps | Maximum Input: 10A Maximum Resolution: 0.1µA Accuracy: +/-0.5% |
| AC Amps | Maximum Input: 10A Maximum Resolution: 0.1µA Accuracy: +/-0.8% |
| Resistance (Ohms) | Maximum Input: 40MΩ Maximum Resolution: 0.1Ω Accuracy: +/-0.5% |
| Frequency | N/A |
| Capacitance | N/A |
| Inductance | N/A |
| Temperature (K-Type Thermocouple) | N/A |
| Continuity | Audible at less than 50Ω |
| Diode | 3V at 30µA maximum output |
| Duty Cycle | N/A |
| True RMS Responding | No |
| Conductance | No |
| Pulse Width | No |
| Data Hold | Yes |
| Min/Max Record | Yes |
| Time Stamp Logging | No |
| Relative Mode | No |
| Compare Mode | No |
| RS-232 Output | No |
| Process Loop Output | No |
| Sleep Mode / Auto Off | Yes |
| Protective Boot | Yes (standard) |
| Display Type | 4000 count LCD |
| Range Selection | Auto / Manual |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 14°F to 122°F (-10°C to 50°C) |
| Humidity | 80% non-condensing |
| Size | 7.4” x 3.4” x 1.2” (187mm x 86mm x 33mm) with boot |
| Weight | 12oz (340g) with boot |
| Battery Type | 1.5V “AA” Alkaline (2) |
| Battery Life | 200hrs Typical |
| Overvoltage Category | CAT III 600V |
| Agency Approval | cULus 61010-1, IEC 61010-1 |
| Warranty | 3 Years |
| 153 Applications |
|---|
| Thermocouples in furnaces or gas applications |
| Heat anticipator current in thermostats |
| Line voltage |
| Voltage of direct drive DC motors |
| Control circuit voltage |
| Motor run and start capacitors |
| Flame safeguard control current |
| Heating element resistance (continuity) |
| Compressor winding resistance |
| Contactor and relay coil resistance |
| Continuity of wiring |
| Temperature w/ optional temperature adapter |
| DMMs FAQs | |
|---|---|
|
1. Is there a way to measure higher current with a TPI DMM? TPI DMMs (except the 120 and 126) have the capacity to read up to 10A AC/DC. Optional adapters are available for all models to increase the current range. Our shunt adapters are available to increase the range up to 1,000A AC/DC. 2. What other adapters are available for TPI DMMs? Various adapters including carbon monoxide (A771), pressure (A620/630), and clamp-on low current (A254) are available. Contact TPI for additional information. 3. Which of the TPI DMMs will measure temperature? All TPI DMMs can measure temperature by using the optional A301 K-Type thermocouple temperature adapter. 4. Which TPI DMMs can measure DC millivolts? All TPI DMMs measure millivolts. Models are available with 1 or 0.1 millivolt resolution. 5. Which TPI DMMs can measure DC microamps? The TPI 126, 133, 135, 153, 163, 183, 190, 194, 196, and 440 all have this capability. 6. Which TPI DMMs will measure capacitance? The TPI 135, 183, 190, 192, 194, and 440 all have this capability. 7. What is continuity? Continuity refers to a test performed on wires and circuits to see if a break(open) exhists. If the wire or circuit is continuous, the resistance reading will be at or near zero. The continuity range on a meter provides audible indication of a continuous circuit, allowing quicker tests without having to take your eyes off the circuit or wire under test. |
