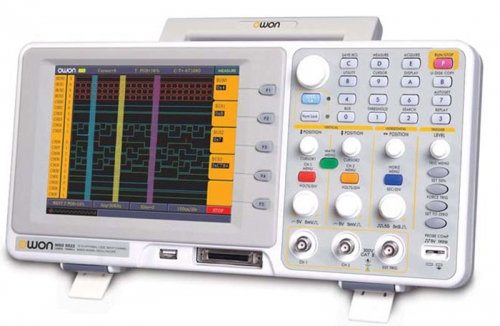

OWON MSO5022S Digital Storage Oscilloscope

Specifications:

Digital Storage Oscilloscope

Sampling

• ACQU Mode: Sample, Peak Detection, Average
• Sampling Rate: 100 MS/s

Input

• Input Coupling: DC, AC
• Input Impedance: 1MΩ± 2%, connected with 20pF± 5pF in parallel
• Probe attenuation coefficient: 1X, 10X, 100X, 1000X
• Max. Input Voltage: 300V, Peak Value

Level

• Sampling Rate Range: 10S/s - 100MS/s
• Waveform interpolation: (sinx)/x
• Record Length: 5000 sampling points per channel
• Scanning Speed Range (S/div ): 5ns/div - 5s/div, according to the stepping mode of 1-2.5-5.
• Accuracy of Sampling Rate and Delay Time: ± 100ppm (for any time interval equal to or greater than 1ms)
• Measuring Accuracy of Time Interval (ΔT) (Full Bandwidth) Single: ± (One Sampling Interval Time +100ppm × Reading +0.6ns) >Averages of 16: ± (One Sampling Interval Time +100ppm × Reading +0.4ns)

Vertical

• A/D Converter: Resolution of 8 bits, with the sampling carried out in two channels at the same time
• Sensitivity (Volt/division) Range (V/div): 5mV/div - 5V/div (at the input BNC)
• Displacement Range: ± 10div (5mV - 5V)
• Simulative Bandwidth: 25M
• Single Bandwidth: Full Bandwidth
• Low frequency respond (AC Coupling, -3dB): ≥5Hz (at BNC)
• Rising Time (Typical, at BNC ): ≤17.5ns
• DC Gain Accuracy: ± 3%
• DC Measuring Accuracy (Average for ACQU MODE): The voltage difference (ΔV) between any two points on the wave form after averaging the captured wave forms of more than 16: ± (5% Reading + 0.05 divisions)

Trigger

Trigger Type

• Edge: Rising, Falling
• Video: Line, Field, Odd Field, Even Field, NTSC, PAL/SECAM
• Alternating
• AC line: (100 - 240 VACRMS)

Trigger Sensitivity (Edge Trigger)

• DC Coupling: Channel 1 and Channel 2: 1div (DC - Full Bandwidth)
• EXT: 100mV (DC - Full Bandwidth)
• EXT/5: 500mV (DC - Full Bandwidth)
• AC Coupling: It is the same as the DC coupling in case of 50Hz or more

Trigger Level Range

• Internal: ± 6 divisions from the screen center
• EXT: ± 600mV
• EXT/5: ± 3V

Trigger Level Accuracy (Typical): It is applicable to the signal with the rising and falling time ≥ 20ns

• Inside: ± 0.3 div
• EXT: ± (40mV + 6% of Set Value)
• EXT/5: ± (200mV +6% of Set Value)

Trigger Displacement

• Preliminary Trigger: 1300 divisions
• Late Trigger: 4 divisions

Set Level to 50% (Typical)

Operation under the condition of input signal frequency ≥ 50Hz

Trigger Sensitivity (Video trigger, typical)

• Internal: Peak-to-peak value of 2 divisions
• EXT: 400mV
• EXT/5: 2V

Signal System and Line/Field Frequency (Video Trigger Type): Supporting the NTSC, PAL and SECAM broadcast system of any field frequency of line frequency.

Measurement

• Cursor Measurement: Voltage difference (ΔV) and time difference (ΔT) between cursors
• Automatic Measurement: Peak-to-Peak Value, Average, RMS, Frequency and Cycle

Probe

Logic analyzer

• Sampling rate: 20 S/s - 100 MS/s Step as 1-2-5
• Input channel: 16
• Max Storage: 4M/Channel
• Measurement bandwidth: 33MHz
• Input impedance: 1MΩ±2%
• Threshold level: 0 - 4V
• Input signal range: 0 - 5V
• Trigger position setting: Pre-trigger, mid-trigger, re-trigger
• Trigger Mode: Bus trigger, state trigger, data alignment trigger, data width trigger
• Data Search: Support
• Data System: Binary system, Decimal system, Hex
• Digital Filter: 0/1/2 optional
• Setting storage: Support
• USB storage: Support

General Technical Specifications:

Display

• Display Type: 7.8" Colored LCD (Liquid Crystal Display)
• Display Resolution: 640 (Horizontal) × 480 (Vertical) Pixels
• Display Colors: 256 Colors

Output of the Probe Compensator

• Output Voltage (Typical): About 5V, with the Peak-to-Peak value equal to or greater than 1M§Ù of load
• Frequency (Typical): Square wave of 1KHz

Power

• Mains Voltage: 100 - 240 VAC RMS, 50Hz, CAT II
• Power Consumption: < 15W
• Fuse: 1A, T grade, 250V

Enviroment

• Temperature: Working temperature: 32°F - 104°F / 0 °C - 40 °C; Storage temperature: -4°F - +140°F / -20 °C - +60 °C
• Relative Humidity: ≤ 90%
• Height Operating: 3,000 m (9,842.5 ft) Non-operating: 15,000 m (49,212.5 ft)
• Cooling Method: Natural convection

Mechanical Specifications

• Dimensions: 14.6in x 7.1in x 4.7in / 370mm x 180mm x 120mm
• Weight: 4.9lb / 2.2kg

Interval Period of Adjustment:

One year is recommended for the calibration interval period
