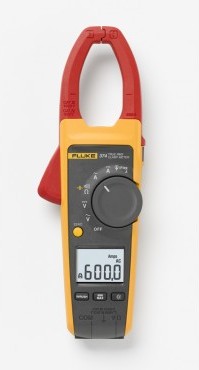

Fluke 374 True-RMS 600A AC/DC Clamp Meter

The Fluke 374 Clamp Meter offers improved performance perfect for a wide range of current measurement situations. With true-rms ac voltage and current measurements, the Fluke 374 can read up to 600 V and 600 A in both ac and dc modes with the fixed jaw.

Key Features

• 600 A AC/DC current measurement and CAT III 1000 V, CAT IV 600 V safety rating allows you to work wherever the job takes you
• Proprietary inrush measurement technology to filter out noise and capture motor and capture motor starting current exactly as the circuit protection sees it

Optional use with the 18" Flexible Current Probe

The Fluke 374 can be used with the Fluke iFlex i2500-18 flexible current probe which expands the measurement range to 2500 A AC while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access.

The Fluke 374 is part of Fluke's new Clamp Meter line that includes: 381, 376, 375, 373 & 365.

Replacing the Fluke 336

The Fluke 374 clamp meter is the direct replacement for the Fluke 336 clamp meter. The Fluke 374 includes all the features of the 336, but also includes:

• CAT IV 600, CAT III 1000 V
• optional iFlex 2500 A AC
• 1000 μF
• Min/Max/Avg

What's Included:

• Coated instruction card
• Safety information sheet
• Soft carrying case
• TL75 test leads
• Two AA Alkaline batteries
