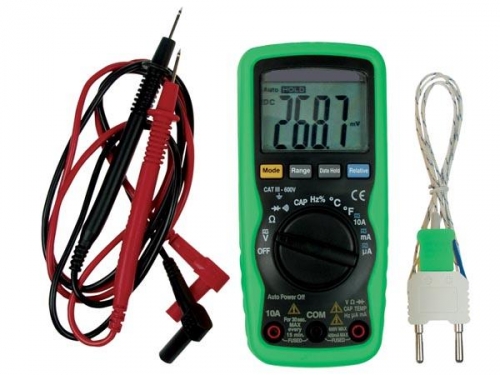

Velleman DVM9912 3 3/4 AUTORANGE DMM - 10A - FREQUENCY - CAPACITANCE - RELATIVE MEASUREMENT

Features

• very complete model
• complies with EN61010
• 4000 counts LCD with function indication
• low-battery indication
• automatic deactivation after 15 min. of inactivity
• audible continuity test
• relative measurement
• diode test
• duty cycle measurement: 0.1% ~ 99.9% (±1.2% + 2 digits) from 5Hz to 150kHz
• data hold function
• included accessories:
  • test leads
  • thermocouple (SONDE890)
  • battery
  • carrying bag

Specifications

• DC voltage: 400m/4/40/400/600V
  • basic accuracy: ±1.2% + 2 digits, ±0.5% + 2 digits (400mV), ±1.5% + 2 digits (600V)
  • input impedance: 7.8M ohms
  • maximum input: 600V
• AC voltage: 400m/4/40/400/600V
  • basic accuracy: ±1.5% + 3 digits, ±1.5% + 15 digits (400mV), ±2.0% + 4 digits (600V)
  • input impedance: 7.8M ohms
  • frequency range: 50 - 400Hz
  • maximum input: 600V
• DC current: 400µ/4m/40m/400m/10A
  • basic accuracy: ±1.5% + 3 digits, ±1.0% + 3 digits (4µA), ±2.5% + 5 digits (10A)
  • overload protection: 0.5A/250V and 10A/250V fuse
• AC current: 400µ/4m/40m/400m/10A
  • basic accuracy: ±1.8% + 5 digits, ±1.5% + 5 digits (4µA), ±3.0% + 7 digits (10A)
  • overload protection: 0.5A/250V and 10A/250V fuse
• resistance: 400/4k/40k/400k/4M/40M ohms
  • basic accuracy: ±1.2% + 2 digits, ±1.2% + 4 digits (400 ohms), ±1.0% + 2 digits (4k ohms), ±2.0% + 3 digits (40M ohms)
  • overload protection: 250VDC
• capacitance: 4n/40n/400n/4µ/40µ/200µF
  • accuracy: ±3.0% + 5 digits, ±5.0% + 50 digits (4nF), ±5.0% + 7 digits (40nF), ±5.0% + 5 digits (200µF)
• inductance: -
  • accuracy: -
• frequency: 10/100/1k/10k/100k/1M/10MHz
  • basic accuracy: ±1.2% + 3 digits, ±1.5% + 5 digits (10/100Hz), ±1.5% + 4 digits (10MHz)
  • overload protection: 250V
• temperature: -4°F ~ 1400°F
  • basic accuracy: 1°F
• overrange: yes "OL"
• continuity buzzer: yes
• transistor test: -
• diode test: yes
• low-battery indication: yes
• maximum display: -
• LCD display size: 0.94"
• ranging mode: autoranging
• data hold: yes
• backlight: no
• dimensions: 150 x 70 x 48mm
• weight (with battery): 8.82oz
• power supply: 9V battery IEC 6F22 (incl.)
• packing: box
• accessories: thermocouple, test leads, pouch
• auto power-off: yes
