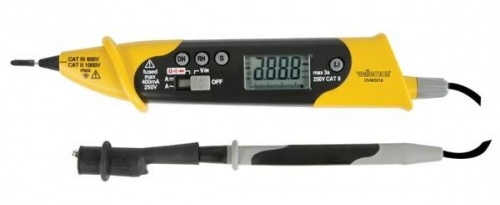

Velleman DVM3218 PEN-TYPE DIGITAL MULTIMETER

Features

• auto range or manual range
• data-hold function
• auto power-off
• diode and continuity test
• voltage measurements: AC and DC 600V max.
• current measurements: AC 34mA and DC 340mA max.
• resistance measurements: 34Mohm max.
• fuse protection: F500mA / 250V
• conform with IEC1010 CATII 1000V, CATIII 600V
• Important safety information

Specifications

• DC voltage: 340mV/3.4V/34V/340V/600V
  • basic accuracy: ± 0.8% for 340mV range / ± 1.0% for 3.4V~340V range / ± 1.2% for 600V range
  • input impedance: 10Mohm
  • maximum input: 1000Vdc
• AC voltage: 3.4V/34V/340V/600V
  • basic accuracy: ± 1.2% for 3.4V~340V range / ± 1.5% for 600V range
  • input impedance: 10Mohm <100pF
  • frequency range: 40-400Hz
  • maximum input: 1000V
• DC current: 34mA/340mA
  • basic accuracy: ±1.5%
  • overload protection: 0.4A / 250V fuse
• AC current: 34mA/340mA
  • basic accuracy: ± 1.8% for 34mA range / ± 2.0% for 340mA range
  • overload protection: 400mA/250V fuse
• resistance: 340/3.4K/34K/340K/3.4M/34M
  • basic accuracy: ±0.8% for 340 Ohm range / ±1.2% for 3.4K~340K range / ±2.0% for 3.4M range / ± 3.0% for 34M range
  • overload protection: 500V
• capacitance : -
  • accuracy: -
• inductance: -
  • -
• frequency: -
  • basis accuracy: -
  • overload protection: -
• temperature: -
  • basic accuracy: -
• overrange: yes "OL"
• continuity buzzer: yes
• transistor test: no
• diode test: yes 1.0mA (open circuit voltage = 3.4V DC)
• low-battery indication: yes
• maximum display: 3400
• LCD display size: -
• ranging mode: manual or automatic
• data hold: yes
• backlight: no
• dimensions: 9" x 1.4" x 0.8"
• weight (with battery): approx. 7oz
• power supply: 2 x 1.5V LR44 batteries V13GA (incl.)
• packing: -
• accessories: manual / battery
• auto power-off: yes
