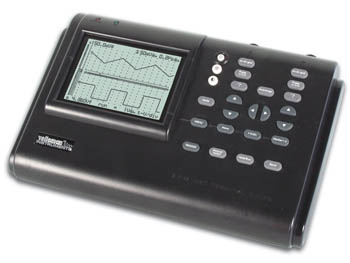

APS230 Velleman Advanced Digital Storage Oscilloscope 240MS/s

Features:

• 2 input channels
• high contrast LCD with white backlight
• full auto set-up for volt/div and time/div
• recorder roll mode, up to 170h per screen
• trigger mode: run - normal - once - roll ...
• adjustable trigger level and slope
• peak measurements: max, min. and pk to pk
• measurements: rms, dB(rel), dBV, dBm and dBG
• Direct Audio power measurements
• x1 and x10 probe calculation option
• several display modes
• StereoScope mode for audio measurement
• X and Y position shift
• battery pack included, fast charge possible

 Specifications:

• input impedance: 1 Mohm / 20pF
• bandwidth: 2 x 30MHz
• sampling: 240MS/s per channel
• step markers for voltage, time, ...
• vertical resolution: 8 bit
• sensitivity: min. 30µV
• volts per division: 1mV to 20V/div
• time base: from 25ns to 1 hr/div
• AC/DC input coupling selection
• RS232 communication with PC (PCUSB6 for USB connection in option)
• dimensions: 9.1" x 5.9" x 2.0"
• weight: 30oz. incl. battery
