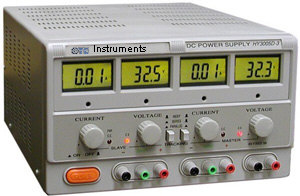

HY3005-3 MASTECH Triple Output Variable DC Power Supply Digital 2X (0-30)V@(0-5)A 1X 5V@3A DC
SKU: HY3005-3
Stock: -5
Stock: -5
Price:
$184.97
- This high quality power supply has three outputs: two outputs are continously adjustable at 0-30V DC and 0-5A, and the third output is fixed at 5V DC and 3A. What's more, the two outputs can be used either in independent, series or parallel mode, providing either two independent outputs, or one output with twice the voltage or twice the current output, up to 60V or 10A. The unit comes with 4 back-lit LCD displays, providing accurate and clearly visible readout for the voltage and current value. This unit has toggle switch at the back that allows you to operate it in 110V AC or 220V AC. retails well over $400. Please email us with any questions, our hard-working staff will answer every email in no time! *Two level of control for both current and voltage outputs: coarse and fine for ease of use *Dual adjustable outputs: 0-30V and 0-5A *Fixed output: 5V and 3A *Input voltage: 110V AC and 220V AC switchable *Line regulation: CV <= 0.01% + 2 mV, CC <= 0.2% + 2 mA> *Load Regulation: CV <= 0.01% + 3mV, CC <= 0.2% + 3 mA *Ripple noise: CV <= 0.5 mV RMS, CC <= 3 mA RMS *Protection: constant current and short-circuit protection *LCD reading accuracy: +/-1% for voltage and +/-2% for current *Environment: 0-40C, relative humidity < 90% *Size: 14" x 10" x 8" *Weight: 35 lbs *Warranty: 1 year
- Dual adjustable outputs: 0-30V and 0-5A, Fixed output: 5V and 3A
- The unit comes with 4 back-lit LCD displays
- Input voltage: 110V AC and 220V AC switchable
- Warranty: 1 year
