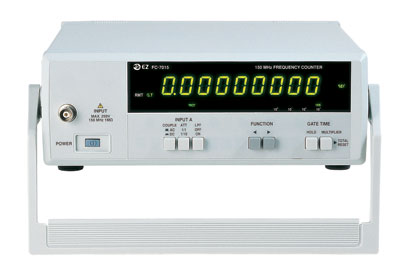

FC-7015 Frequency Counter 0.1~150MHz

Features:

- Frequency measuring range : 0.1Hz to 150MHz in A input
- Period / Total / RPM measurement for input A
- 9 digit display with 0.01mHz resolution in 1 sec.
- High sensitivity external reference input function (higher than 20mVrms)
- Microprocessor controlled
- Reciprocal technique for high resolution at low counting frequency
- Self check function executed to perform an automatic self diagnosis of various counter function
- Push-scanning for selecting function and gate time
- Low-pass filter(100kHz, -3dB) installed for removing noise signal in low frequency measuring
- AC/DC coupling function (selectable X1 / X10 attenuator)
- Data hold function
- Optional RS-232C serial interface function for communication with computer
