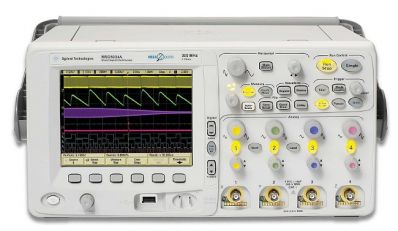

Agilent MSO6052A MegaZoom III Technology 500-MHz Oscilloscope

Agilent focuses on developing products that help you do your job better. Agilent’s 6000 Series scopes are optimized for your measurement needs. Choose the one that’s right for your application and your budget.

Bring your toughest problems into focus with the right combination of features and performance If you work with both analog and digital circuitry, Agilent Technologies 6000 Series oscilloscopes can help you easily see more signal activity in your designs.

The unique 2+16- or 4+16-channel mixed signal oscilloscope (MSO) models and the traditional 2- and 4-channel digital storage oscilloscope (DSO) models are optimized with the capabilities you need for verifying and debugging designs that include embedded 8- or 16-bit microcontrollers, DSPs, FPGAs, ADCs, DACs, and transducers. These scopes give you the tools you need to solve your mixed analog and digital engineering challenges more easily.

A variety of models optimized to meet your needs:

• 300 MHz, 500 MHz and 1 GHz bandwidth
• Up to 4 GSa/s sample rate
• Unique 2+16-channel, 4+16-channel mixed signal oscilloscope (MSO) and 2- or 4-channel digital storage oscilloscope (DSO) models

Industry-leading performance:

• Standard 1 Mpts MegaZoom III deep memory; up to 8 Mpts optional
• High-definition XGA (1024 x 768) color display system with ultra-fast real-time update rate of up to 100,000 waveforms/sec and 256 intensity levels
• Flexibility to upgrade a DSO to an MSO at any time
• Full-scale connectivity – Standard USB, LAN, GPIB and XGA video output
• Powerful triggering including analog HDTV, CAN, I2C, LIN, SPI, and USB
• AutoProbe interface
• Built-in help system

New Agilent 6000 Series = older Agilent 54640 Series PLUS

• 4/4+16 channel models and 1 GHz models
• 2x sampling rate (up to 4 GSa/s scope and 2 GSa/s logic)
• MSO-upgradeable DSOs
• MegaZoom III deep memory combining fast and deep memory, new ultra-high definition color LCD display with XGA resolution and 256 levels of intensity
• Faster waveform update rates (100,000 waveforms/sec)
• Standard analog HDTV/EDTV and either edge triggering
• Built-in front panel USB port replaces floppy drive
• Standard USB, LAN and GPIB
• XGA video output
• AutoProbe interface
• 10 MHz reference clock in/out
• Signal frequency feedthrough
• 8-digit hardware frequency counter (when using external 10 MHz reference input)
• Lighter weight
• Unique 2+16-channel and 4+16-channel mixed signal oscilloscope (MSO) and 2- or 4-channel DSO models (can be upgraded to MSO capability) What is an MSO?

MegaZoom III technology provides industry-leading performance with the:

• Most responsive deep memory
• Highest definition color display
• Fastest waveform update rates, uncompromised
• High-definition XGA color display system with the fastest waveform update rate of up to 100,000 waveforms/sec and 256 levels of intensity grades.

Powerful triggering including analog HDTV, I2C, SPI, LIN, CAN and USB.

More connectivity choices - LAN, USB, GPIB, and XGA video are all included standard.
