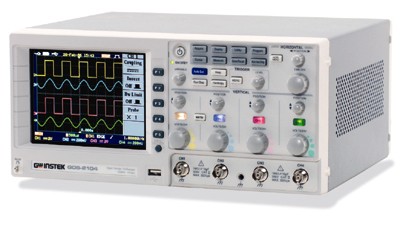

Instek GDS-2062 Series 60MHz Digital Storage Oscilloscope 2 Channel
SKU: GDS-2062
Stock: 0
Stock: 0
Price:
$840.00
Instek GDS-2062 Series 60MHz Digital Storage Oscilloscope 2 Channel
The GDS-2000 Series, carrying bandwidths of 200MHz, 100MHz and 60MHz and inputs of 2 and 4 channels, makes up a family of 6 members in total. The combination of 1GSa/s real-time sampling rate (25GSa/s for ET sampling) and 25k point’s record length of the GDS-2000 Series provides the highest value platform among all equivalent products available in today's market. The 27 Auto Measurement functions, FFT measurement, Advanced Triggering, 12 Division Horizontal Display, Time Clock, Frequency Counter, Go/NoGo, Multi-Language Screen Menu, On-Line Help, Setup Sequence and a Lifetime Warranty* are all standard features of the GDS-2000 Series.
Features
* 200/100/60 MHz Bandwidth
* 2/4 Input Channels
* 1GSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
* Maximum 25k Points Record Length
* Large 5.6-in TFT Color Display
* USB Host/Device: USB Printer and USB Flash Drive Supported
* Battery Operation (optional)
* Color Printout
Resolution : 6 digits
GDS-2062/2064
GDS-2102/2104
GDS-2202/2204
VERTICAL
Channels
2 / 4
2 / 4
2 / 4
Bandwidth
DC ~ 60MHz (-3dB)
DC ~ 100MHz (-3dB)
DC ~ 200MHz (-3dB)
Rise Time
5.8ns Approx.
3.5ns Approx.
1.75ns Approx.
Sensitivity
2mV/div ~ 5V/div (1-2-5 increments)
Accuracy
±(3% x |Readout|+0.05 div x Volts/div+0.8mV)
Input Coupling
AC, DC & Ground
Input Impedance
1MΩ±2%, ~16pF
Polarity
Normal & Invert
Maximum Input
300V (DC+AC peak), CATII
Waveform Signal Process
+ , - , FFT
Offset Range
2mV/div ~ 20mV/div : ±0.5V
50mV/div ~ 200mV/div : ±5V
500mV/div ~ 2V/div : ±50V
5V/div : ±300V
Bandwidth Limit
20MHz (-3dB)
TRIGGER
Sources
CH1 , CH2 , CH3 , CH4 , Line
Modes
Auto-Level, Auto, Normal, Single, TV, Edge, Pulse Width
Coupling
AC , DC , LF rej. , HF rej. , Noise rej.
Sensitivity
DC ~ 25MHz : Approx. 0.5div or 5mV
25MHz ~ 200MHz : Approx. 1div or 10mV
HORIZONTAL
Range
1ns/div ~ 10s/div (1-2-5 increments)
ROLL : 250ms/div ~ 10s/div
Modes
Main, Window, Window Zoom, Roll, Scan, X-Y
Accuracy
±0.01%
Pre-Trigger
20 div maximum
Post-Trigger
1000 div
X-Y MODE
X-Axis Input
Channel 1
Y-Axis Input
Channel 2
Phase Shift
±3° at 100kHz
SIGNAL ACQUISITION
Real-Time Sample Rate
1GSa/s maximum
Equivalent Sample Rate
25GSa/s maximum
Vertical Resolution
8 Bits
Record Length
25K Points maximum
Acquisition Mode
Normal, Peak Detect, Average
Peak Detection
10ns
Average
2 , 4 , 8 , 16 , 32 , 64 , 128 , 256
CURSORS AND MEASUREMENT
Voltage Measurement
Vpp , Vamp , Vavg , Vrms , Vhi , Vlo , Vmax , Vmin , Rise Preshoot/ Overshoot , Fall Preshoot/Overshoot
Time Measurement
Freq , Period , Rise Time , Fall Time , Positive Width , Negative Width , Duty Cycle
Delay Measurement
Eight types of delay measurement
Cursors Measurement
Voltage difference between cursors (ΔV) Time difference between cursors (ΔT)
Auto Counter
Accuracy : ±2%
Signal Source: All available trigger source except the Video trigger mode
CONTROL PANEL FUNCTION
Autoset
Automatically adjusts Vertical VOLTS/DIV, Horizontal TIME/DIV, and Trigger level
Save Setup
Up to 20 sets of measurement conditions
Save Waveform
24 sets of waveform
DISPLAY
TFT LCD Type
5.6 inch
Display Resolution
234 (Vertically) x 320 (Horizontally) Dots
Display Graticule
8 x 10 divisions ; 8 x 12 divisions (menu off)
Display Brightness
Adjustable
INTERFACE
Go/NoGo Output
5V Maximum/10mA TTL Open Collector Output
RS-232 Interface
DB 9-pin male DTE RS-232 interface
GPIB Interface (Option)
Fully programmable with IEEE 488.2 compliance
USB
USB Host/Device 2.0 full speed supported
POWER SOURCE
Line Voltage Range
AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection
Battery Power(Option)
Battery : 10.8V Li-Ion battery pack
Charge Time : 8 hours (Power ON)
Operating Time : 3 hours , depending on operating condition
MISCELLANEOUS
Multi-Language Menu
Available
Online Help
Available
Time Clock
Time and Date, Provide the Date/Time for saved data
DIMENSIONS & WEIGHT
310(W) x 142(H) x 254(D) mm; Approx. 4.3kg
