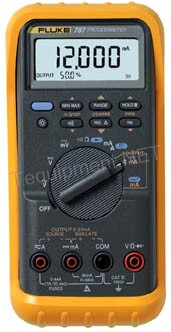

Fluke 787 ProcessMeter

The Fluke 787 Process Meter was the first tool to combine a loop calibrator with a fully-functional 1000V True RMS digital multimeter to give process technicians double the power in one tool.

A maintenance and calibration tool that will be at home in every instrumentation technician's tool box, the Fluke 787 Process Meter combines a DMM and a Loop Calibrator in one rugged, handheld tool, for about what you would expect to pay for a loop calibrator alone. Based on the trusted Fluke 87 DMM, the Fluke 787 adds the ability to measure, source, and simulate dc loop current with 0.05% accuracy and 1 microamp resolution.

Put it all together and you have the ideal tool for troubleshooting and calibrating current loop applications. So if you're tired of always tracking down a calibrator, lugging around two tools and switching back and forth, get the single best solution for doubling your power - the Fluke 787 ProcessMeter.

• Alligator Clips
• Protective Yellow Holster with test lead storage
• One 9V alkaline battery
• Fluke TL75 Safety-Designed Test lead Set
• Product over and Users Manual (CD-ROM) in 14 languages

FEATURES

• Auto (Touch) Hold
• Auto Power Off
• Auto Ramp
• Auto Ranging
• Auto Step
• Backlight
• Continuity
• Counts 30000
• Counts 30000 counts
• Current AC ac amps: 440ma
• Current DC dc amps: 1a
• Diode Test
• Frequency 20
• Low Battery Indicator
• Low Input Impedance
• Manual Ranging
• Min/Max min/max
• Min/Max
• Relative Mode / Zero
• Resistance 40
• Source 4-20 mA
• True RMS
• Voltage AC ac volts: 1000
• Voltage DC dc volts: 1000

SPECS
